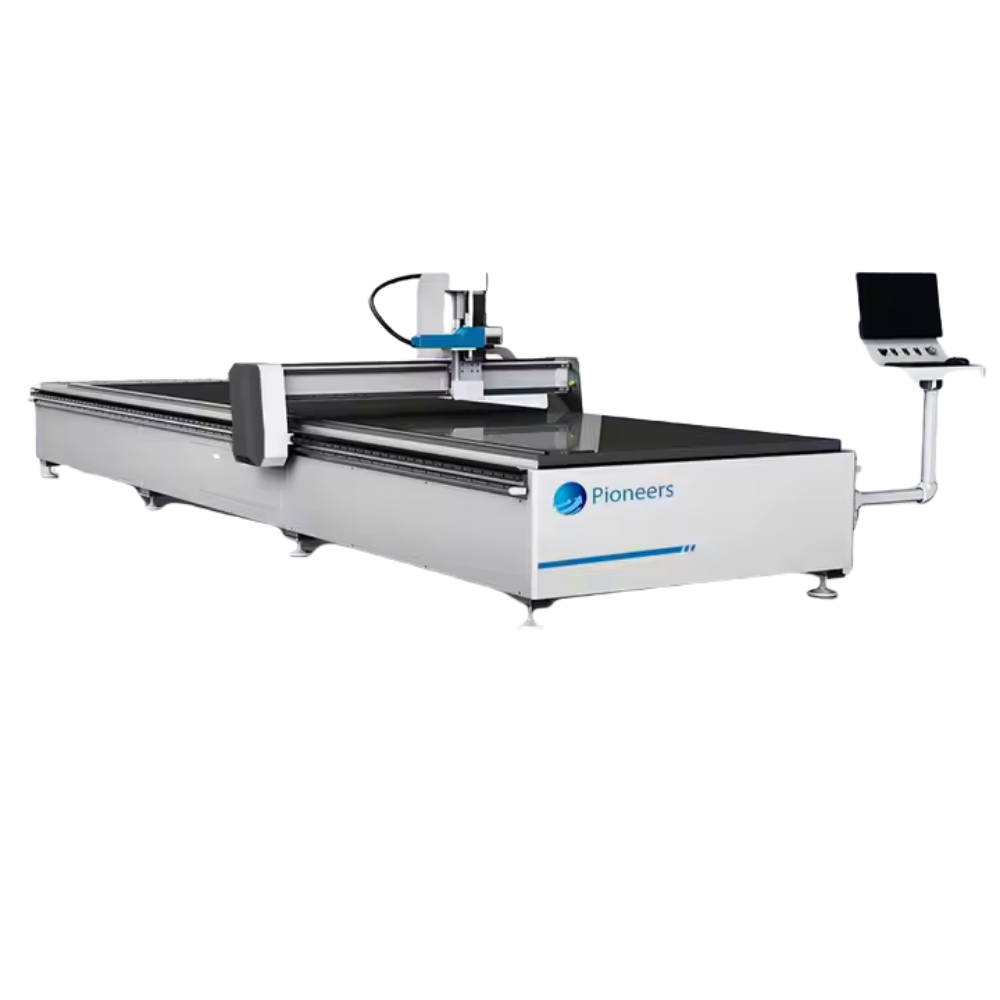

Customized logo High speed Laser Etching Machine
★ Replace chemical etching, environmental protection no pollution ★ No consumables for life，fast processing speed ★ Laser etching machine CNC control system with 1000 multi-image For choosing, also can design by yourself ★ Pollution-Free Precision: Ensures a clean and safe working environment.
Laser Etching Machine Features
- High speed stainless steel etching
- Low maintenance cost
- High precision and micro-machining capabilities
- Can process a variety of materials
Laser Etching Machine Highlight
Thick aluminum table offers stable and solid platform
High precision and high speed Germany galvanometer
High precision transmission system using linear rail and servomotor
Superior machine body design
High speed Chinese servomotor
Laser Etching Machine Parameters
| Model No. | PLE 1310/1325/1530 |
| Table size(mm): | 1300*1000/1300*2500/1300*3000 |
| Working way | Laser Etching |
| Laser Power(W) | 100 W |
| Material thickness (mm) | 0.5-80 |
| Working precision (mm) | ≤0.02 |
| Etching depth (mm) | 0.03-0.05 |
| Etching speed (mm/s) | 10-10000 |
| Files format | DXF 、PLT、BMP 、 EPS 、TIF、 |
| Material fixed way: | Aluminum vacuum table |
| Power of vacuum table | 7.5KW |
| X Y Z travelling system | X Y Z adopt Japan Panasonic servo system |
| Control System | Taiwan Syntec Follow-up laser control system |
| Machine size(mm): | 3680*2800*1500 |
| Machine Weight | 1200KG |
| Total power: | 1KW |
| Voltage | 220V/50HZ(machine）380V/50HZ( vacuum table） |
Laser Etching Machine Sample
F&Q:
- How does the laser etching machine perform sanding on mirror stainless steel surfaces?
The laser etching machine uses high-precision laser technology to gently remove the top layer of the mirror finish, creating a frosted or matte effect without damaging the underlying material. It is ideal for decorative applications in elevators or interior design. - What are the advantages of using a laser etching machine for sanding?
The laser etching machine offers high accuracy, consistency, and efficiency. It is non-contact, preventing surface damage, and produces minimal waste. Additionally, it allows for customizable patterns and designs, making it perfect for aesthetic enhancements in stainless steel decor. - Will the mirror finish of the stainless steel be damaged after laser sanding?
When properly calibrated, the laser etching machine will not damage the mirror finish. It only removes the top layer to achieve the desired frosted effect, ensuring the surface remains intact and maintains its durability for long-term use.
-
