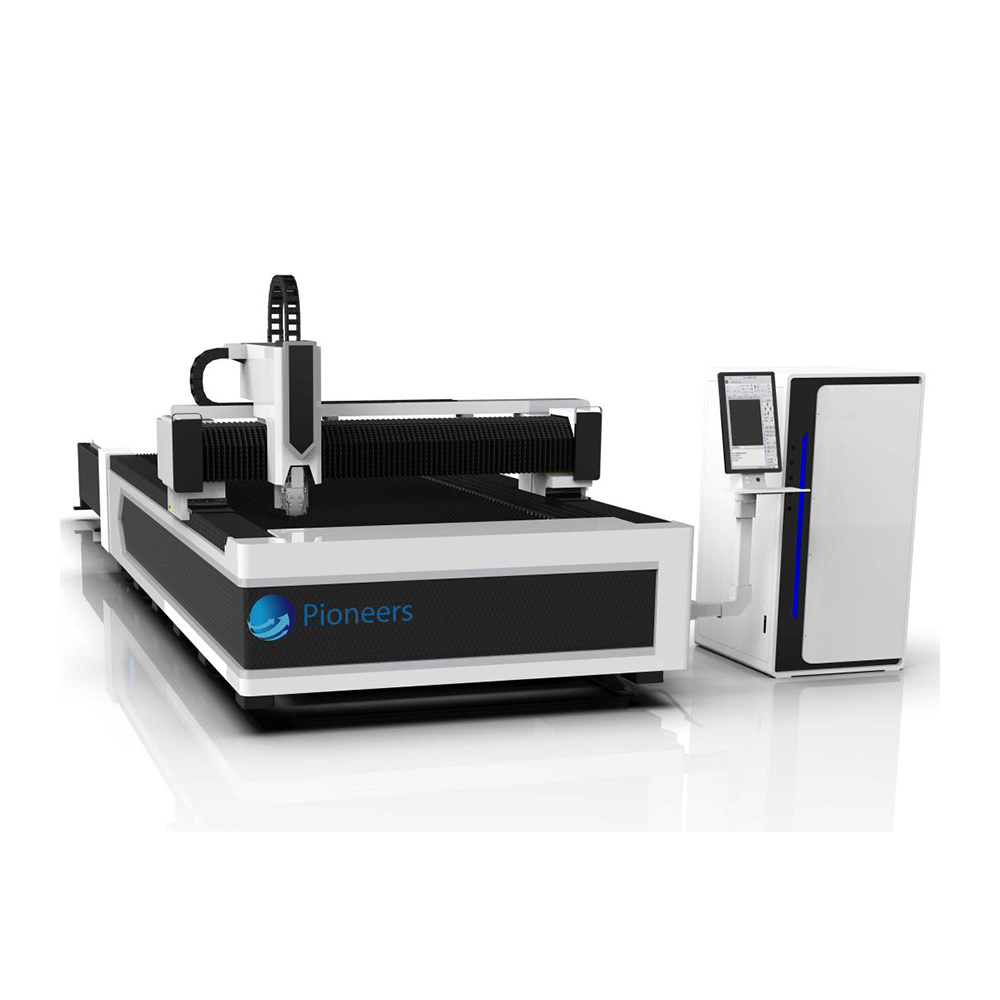

Fiber Laser And CO2 Laser Hybrid Cutting Machine For Metal And Non Metal
Fiber laser and CO2 laser hybrid cutting machine combined two different kinds of laser in one machine, realizes the function of cutting metal and non-metal materials at the same time.
Machine Highlight
Dual laser source for metal and non-metal materials
high precision transmission system
Technical parameters
| Series | Items | Description | Unit |
| 1 | X/Y Max Speed | 30 | m/min |
| 2 | Maximum acceleration | 0.6G | m/s2 |
| 3 | X/Y axis positioning accuracy | +0.03 | mm |
| 4 | X/Y axis repeat positioning accuracy | +0.03 | mm |
| 5 | Voltage | 220 | V |
| 6 | Phase | 1 | phase |
| 7 | Hertz | 50/60 | Hz |
| 8 | X axis servo motor | Taiwan Delta 750W | 1 |
| 9 | Y axis servo motor | Taiwan Delta 750W | 2 |
| 10 | Z axis servo motor | Taiwan Delta 400W | 1 |
| 11 | Laser source | Raycus / IPG | 1 |
| 12 | Water chiller | S&A | 1 |
| 13 | Screw | Taiwan TBI ball screw for X,Y,Z | 3 |
| 14 | Oil way | Manual | |
| Processing precision (1mm stainless steel) | Φ30mm roundness | ≤0.1 | mm |
| Φ30mm adjacent side dimension difference | ≤0.04 | mm | |
| Φ190mm adjacent side dimension difference | ≤0.06 | mm | |
| Φ190mm diagonal size difference | ≤0.07 | mm |
FAQ
- What is the difference between this machine and other laser cutting machine?
This machine is specially designed for cutting both metal sheets and non-metal sheets. This machine has fiber laser source and CO2 laser tube, can cut metal and non-metal materials such as acrylic and wood.
