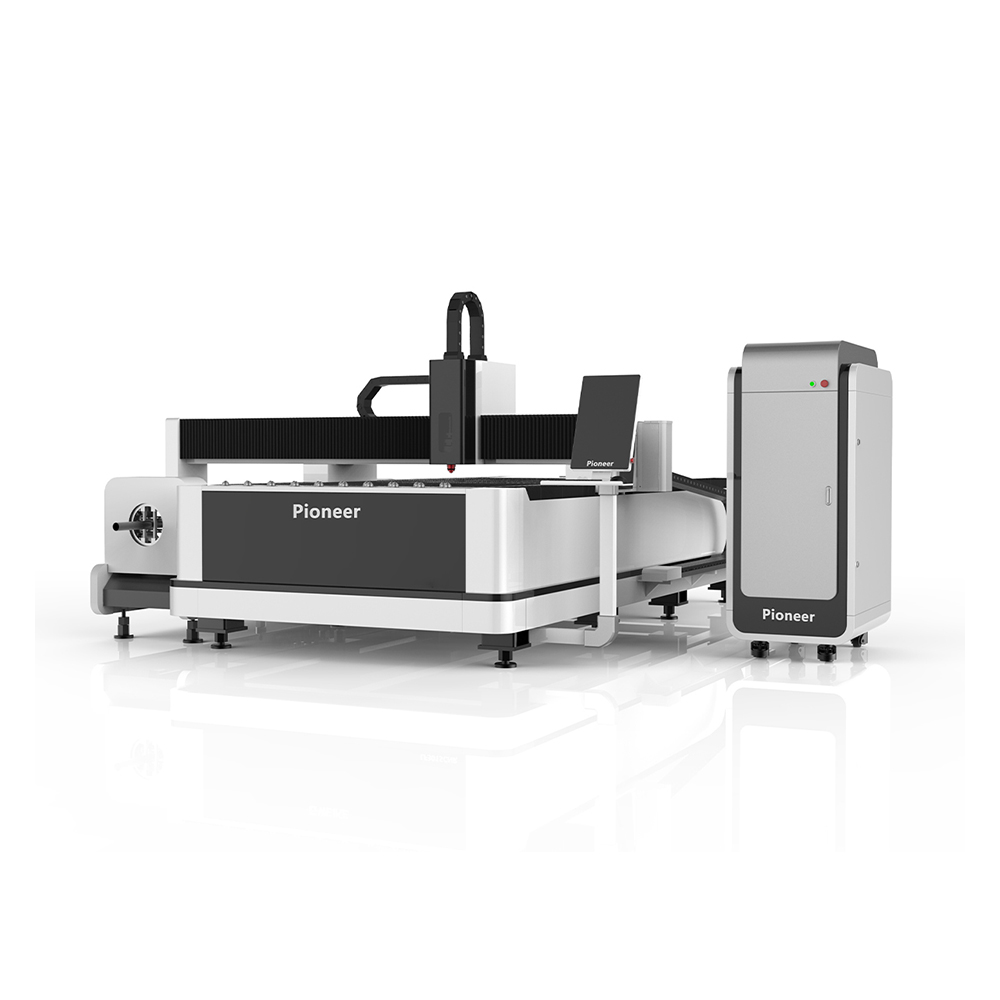

Sheet and Tube Fiber Laser Cutting Machine
Sheet and tube fiber laser cutting machine is designed for cutting both sheet metals and tube metals on one machine. Attached with a tube cutter, can cut up to 9 meters metal tube. The laser cutting head is also specially designed to cut sheets and tubes.
Features
- Designed to cut both sheet metals and tubes
- 3 meters/ 6 meters/9 meters tube cutter optional
- Space saving
Sheet and Tube Fiber Laser Cutting Machine highlight
zoned smoke exhaustion heavy duty machine body
professional tube cutting chuck
Professional laser cutting head with tube cutting nozle
Technical parameters
| Working area | 3000*1500mm/6000*2000mm |
| Max.Distance of X axis | 1500/2000mm |
| Max.Distance of Y axis | 3000/6000mm |
| Max.Distance of Z axis | 300mm |
| X/Y Max Speed | 100m/min |
| Pipe cutting device | 3000/6000mm |
| Pipe cutting diameters | Φ20mm-230mm |
| Maximum acceleration | 1.2G |
| X/Y axis positioning accuracy | +0.03mm |
| X/Y axis repeat positioning accuracy | +0.02mm |
| Voltage | 380V |
| Phase | 3 |
| Hertz | 50/60HZ |
| Maximum bearing capacity | 4500KG |
| Laser source | Raycus/IPG/MAX |
| Water chiller | S&A |
FAQ
- What can I cut with this machine?
Customers can cut sheet metals and tube metals with our sheet and tube fiber laser cutting machine, with customizable working area size and tube cutter, this machine can support up to 12meters tube and 6000*2500mm sheets.
-
